XK-550 Type Rubber Mixing Mill with 100kg Batch Capacity and 1500mm Roll Working Length

Marka Adı:	Beishun
Model Numarası:	XK-550
Adedi:	1 takım
fiyat:	Anlaşılabilir
Paketleme Ayrıntıları:	40GP
Ödeme Şartları:	T/T, Western Union, L/C

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Qingdao

Sertifika:

ISO/CE

Çekirdek bileşenler:

PLC, Rulman, Şanzıman, Motor

Silindir sertliği:

Soğutulmuş dökme demir sertliği HS 72

Soğutma modu:

Su soğutma

Redüktör Markası:

Silindir Yüzeyi:

Rulo çalışma uzunluğu:

1500mm

Silindir Soğutma:

Su soğutma

Sürtünme oranı:

1:1.22

Fren:

Hidrolik İtici Frenler

Taşıma:

Oynak Makaralı Rulman

Uygulama:

kauçuk bileşiğinin karıştırılması

RollerDrive:

V Kayışı

Motor gücü:

110kw

Silindir tipi:

İçi boş tip / Delme rulosu

Yetenek temini:

30set/ay

Vurgulamak:

XK-550 Type Rubber Mixing Mill

100kg Batch Capacity Open Mixing Mill

1500mm Roll Working Length Two Roll Mill

Ürün Açıklaması

XK-550 Type Rubber Mixing Mill With 100kg Per Batch Capacity

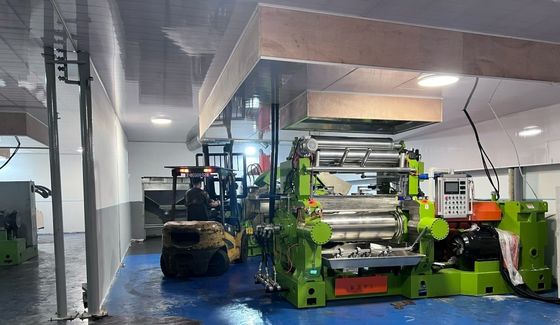

This industrial rubber mixing system combines a 110L Kneader with an XK-550 Open Mixing Mill for efficient two-stage processing, delivering superior mixing quality and production capacity of 100kg per batch.

Two-Stage Mixing Process Overview

This modern setup replaces labor-intensive single-stage mixing with an optimized two-phase approach:

Stage 1: 110L Kneader (Intermixer) for intensive mixing, blending, and plastication
Stage 2: XK-550 Open Mixing Mill for final mixing, homogenization, and sheet production

110L Rubber Kneader Specifications

This batch-type internal mixer serves as the primary workhorse for initial compound preparation:

Function: High-intensity mixing of polymers, fillers, oils, and chemicals
Capacity: 110L chamber (65-80kg actual batch weight)
Advantages: Faster mixing, superior dispersion, enclosed design reduces dust/fumes
Operation: Uses counter-rotating, intermeshing rotors in sealed chamber

XK-550 Open Mixing Mill Features

The finishing unit completes the mixing process and prepares material for downstream processing:

Function: Final mixing, homogenization, cooling, and sheeting
Capacity: 100kg per batch (550mm roll diameter × 1500mm length)
Key Processes: Dumping, blending, sheeting, and cooling
Operation: Uses counter-rotating rolls with differential speeds/temperatures

Standard Rubber Mixing Workflow

Precise weighing of all raw materials
Rubber loading and mastication in kneader
Intensive mixing with additives in kneader
Masterbatch transfer to XK-550 mill
Final mixing and curative addition on mill
Sheeting and cooling process
Storage or feeding to downstream processes

System Advantages

High productivity with optimized labor requirements
Superior compound quality and consistency
Precise control over mixing parameters
Reduced manual labor compared to open mill-only systems

Technical Specifications

Model	XK-450	XK-550	XK-560
Roller diameter	450mm	550mm	560/510mm
Roller working length	1200mm	1500mm	1500mm
Front roll linear speed	24.5	27.94	27.87
Friction ratio of roller	1:1.27	1:1.22	1:1.2
Motor	55	110	90
Batch capacity	25-50kg	50-60kg	50-60kg
Machine size	5200×2380×1770mm	5900×2680×2080mm	6500×2300×2000mm
Machine weight	≈12000kg	27000kg	19500kg

Industrial Applications

This system is ideal for manufacturing:

Tire components (tread, sidewall, inner liner)
Automotive rubber parts (hoses, belts, gaskets)
Industrial rubber products (conveyor belts, linings)
Footwear components
High-performance technical rubber products

The 110L Kneader + XK-550 Open Mill combination delivers an optimal balance of productivity, quality, and versatility for professional rubber manufacturing facilities.
