80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Marka Adı:	Beishun
Model Numarası:	XLB-500×500/0.8MN
Adedi:	1 TAKIM
fiyat:	Anlaşılabilir
Ödeme Şartları:	L/C,T/T
Tedarik Yeteneği:	30 takım/40 gün

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Qingdao

Sertifika:

ISO/CE

Isıtma:

Elektrik / Petrol / Buhar

Yapı Tarzı:

Yatay

Silindir Stroku:

500 mm

Kontrol:

Plc otomatik

Vulkanizasyon Süresi:

0-999S

Makine tipi:

Hidrolik/Mekanik Vulkanizasyon Presi

Diğer isim:

Düz Vulkanlama Basıncı

Sıcaklık aralığı:

0-400 ℃

Çalışma sıcaklığı:

300°C'ye kadar

Kalıp uyumluluğu:

Özel kalıplar desteklenir

Isıtma Modu:

Standart İhracat Paketleme

önemli satış noktaları:

İyi kalite ve fiyat

Ambalaj bilgileri:

40GP/OT

Vurgulamak:

80-ton PLC vulcanizing machine

column-type flat vulcanizing press

automatic rubber vulcanizing machine

Ürün Açıklaması

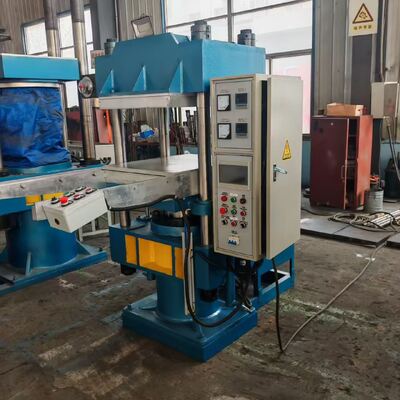

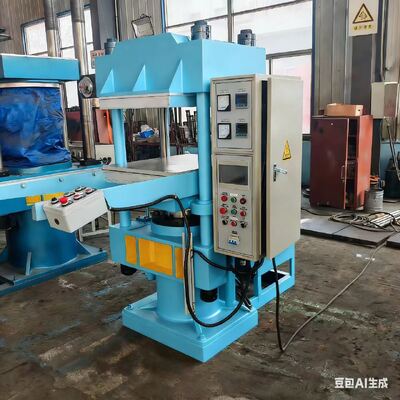

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Applications & Capabilities

This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:

Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.

These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.

Technical Specifications

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn
Platen Size	350x350mm	400x400mm	600x600mm	750x850mm	900x900mm
Daylight	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm
Heating Method	Electric	Electric	Electric	Electric	Electric
Platen Unit Area Pressure	20kg/cm²	31kg/cm²	28kg/cm²	31kg/cm²	31kg/cm²
